Load image into Gallery viewer, Aventon Ramblas ADV eMTB

Aventon Ramblas ADV eMTB

Regular price: $2,899.00
Sale price: $2,899.00
Regular price
Unit price: per

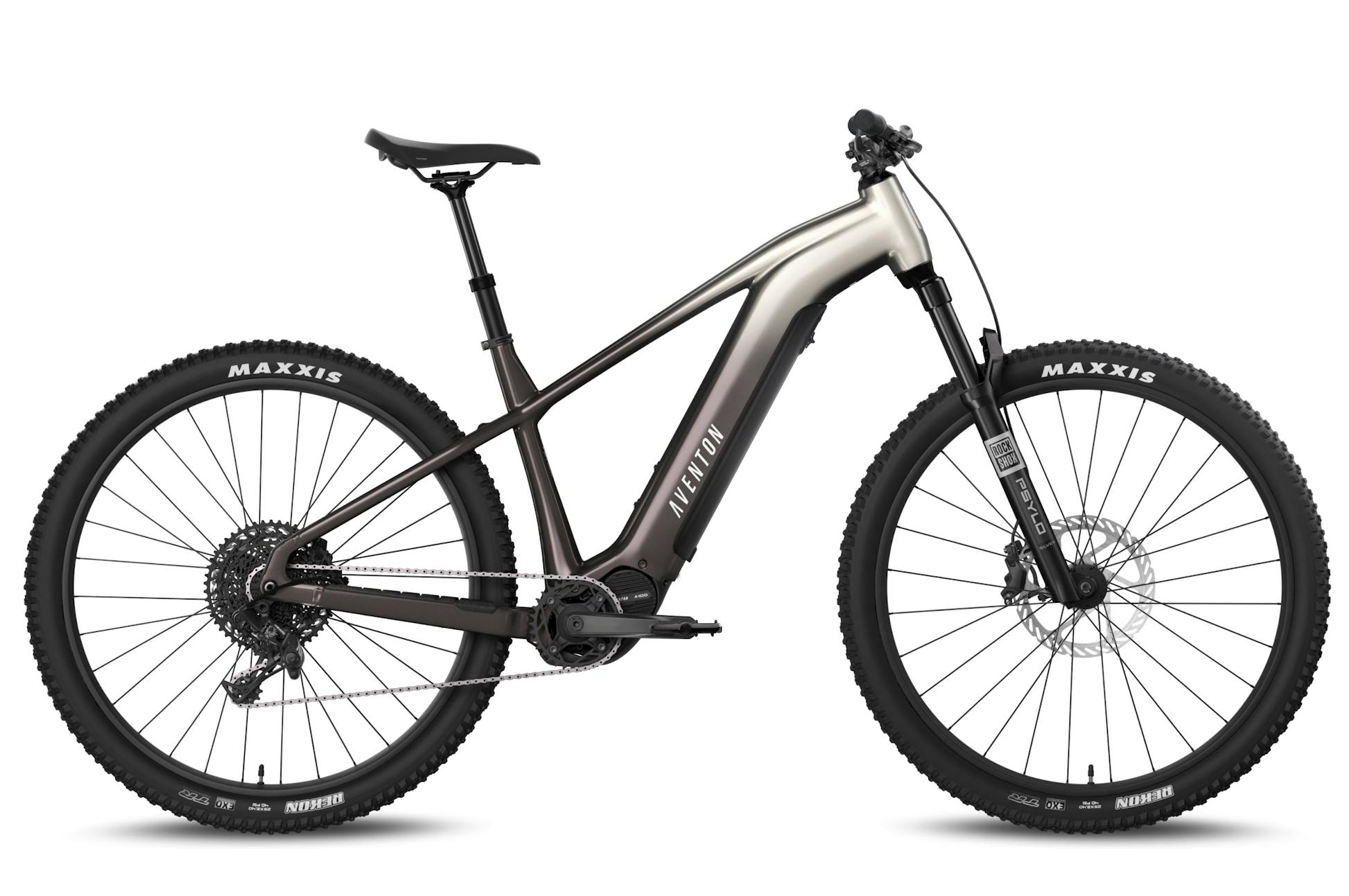

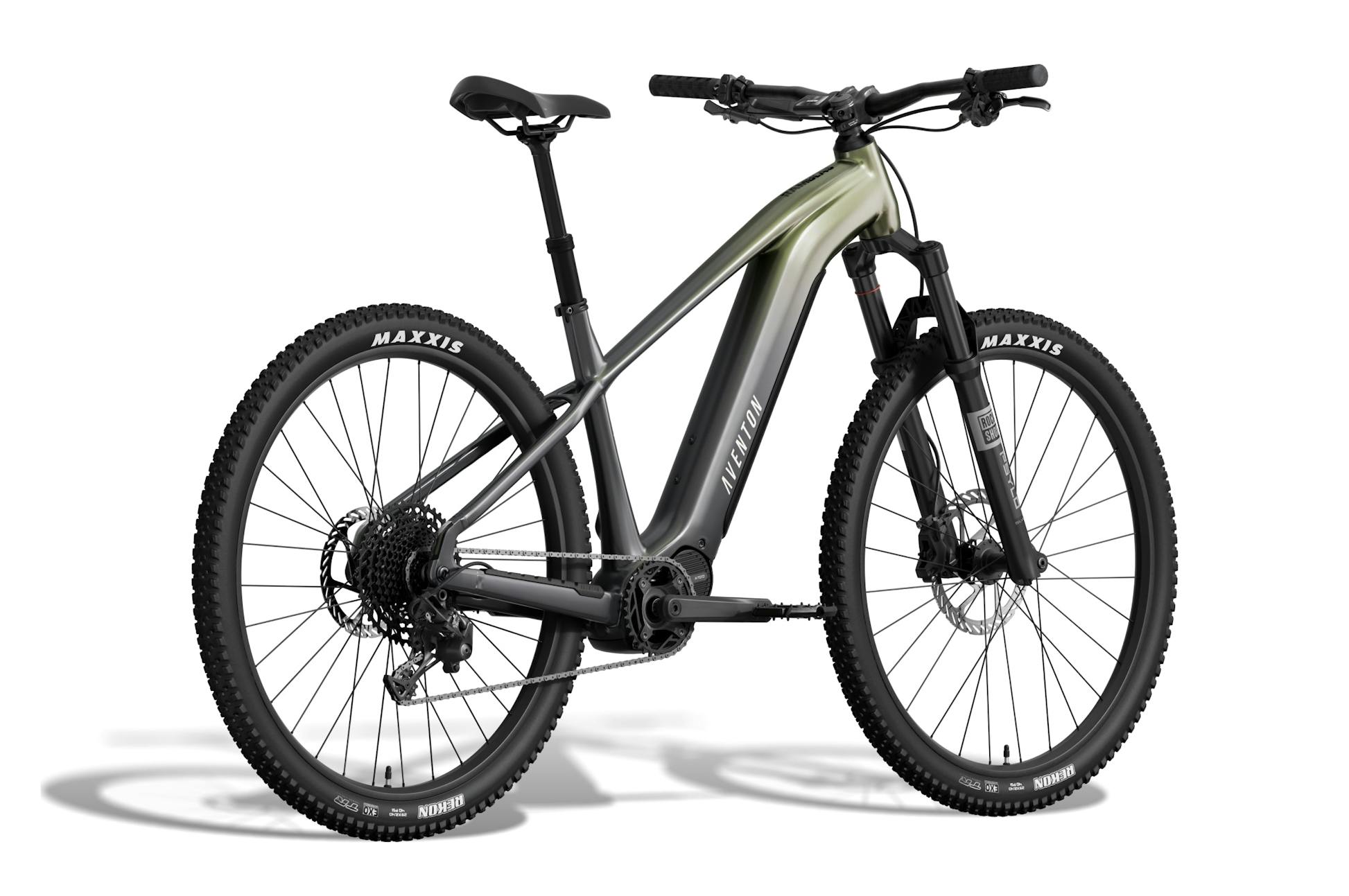

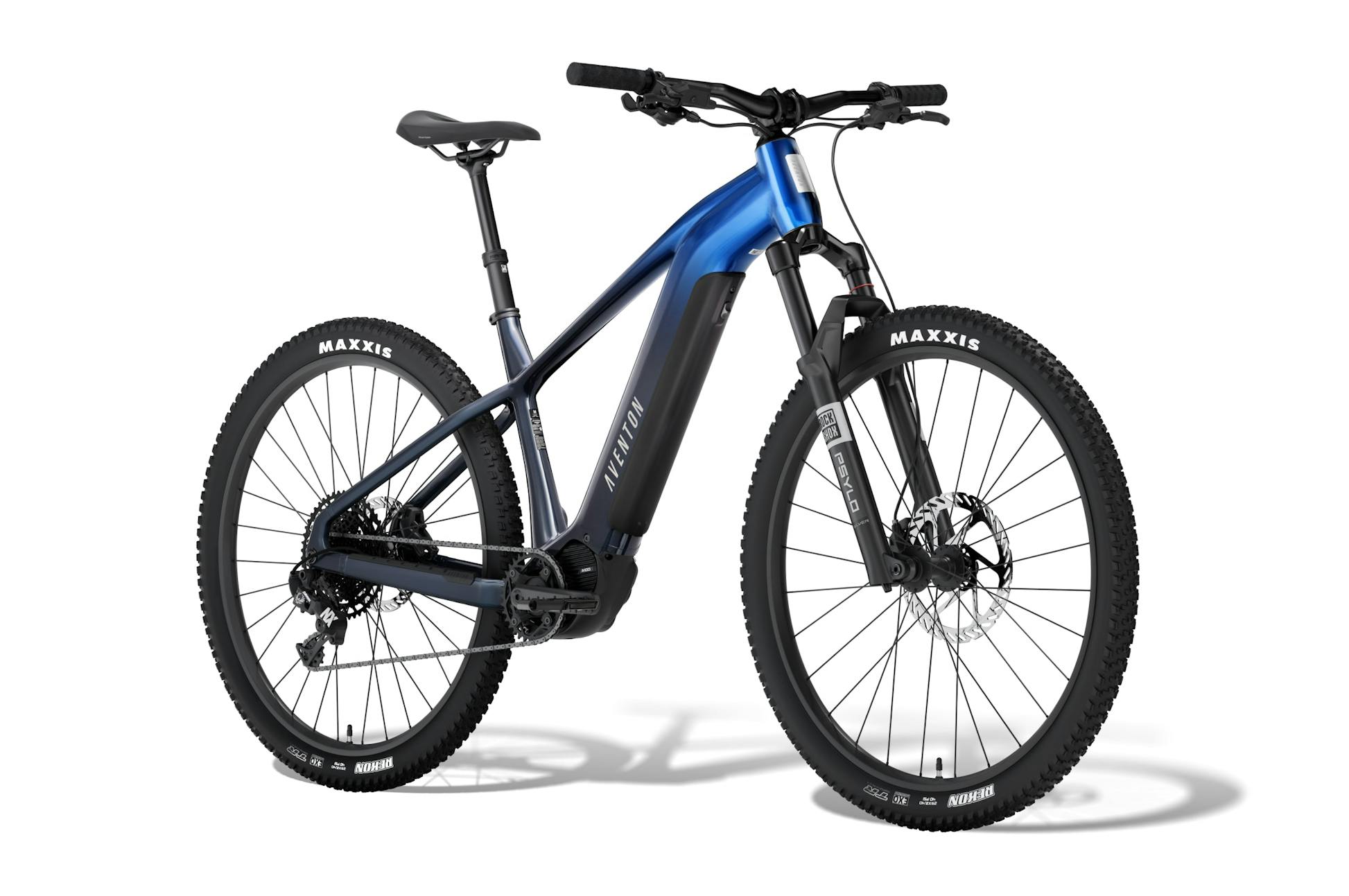

RAMBLAS ADV Mid-Drive E-Bike

Aventon's eMTB that’s trail tested and road ready!

Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.

AUTO Mode

No need to switch between pedal assist modes, simply switch to AUTO mode and let the Ramblas ADV supply the perfect amount of power based on the slope of terrain you're riding. Take advantage of all 100Nm on steep climbs, and automatically dial back the output on flatter sections of trail or road.

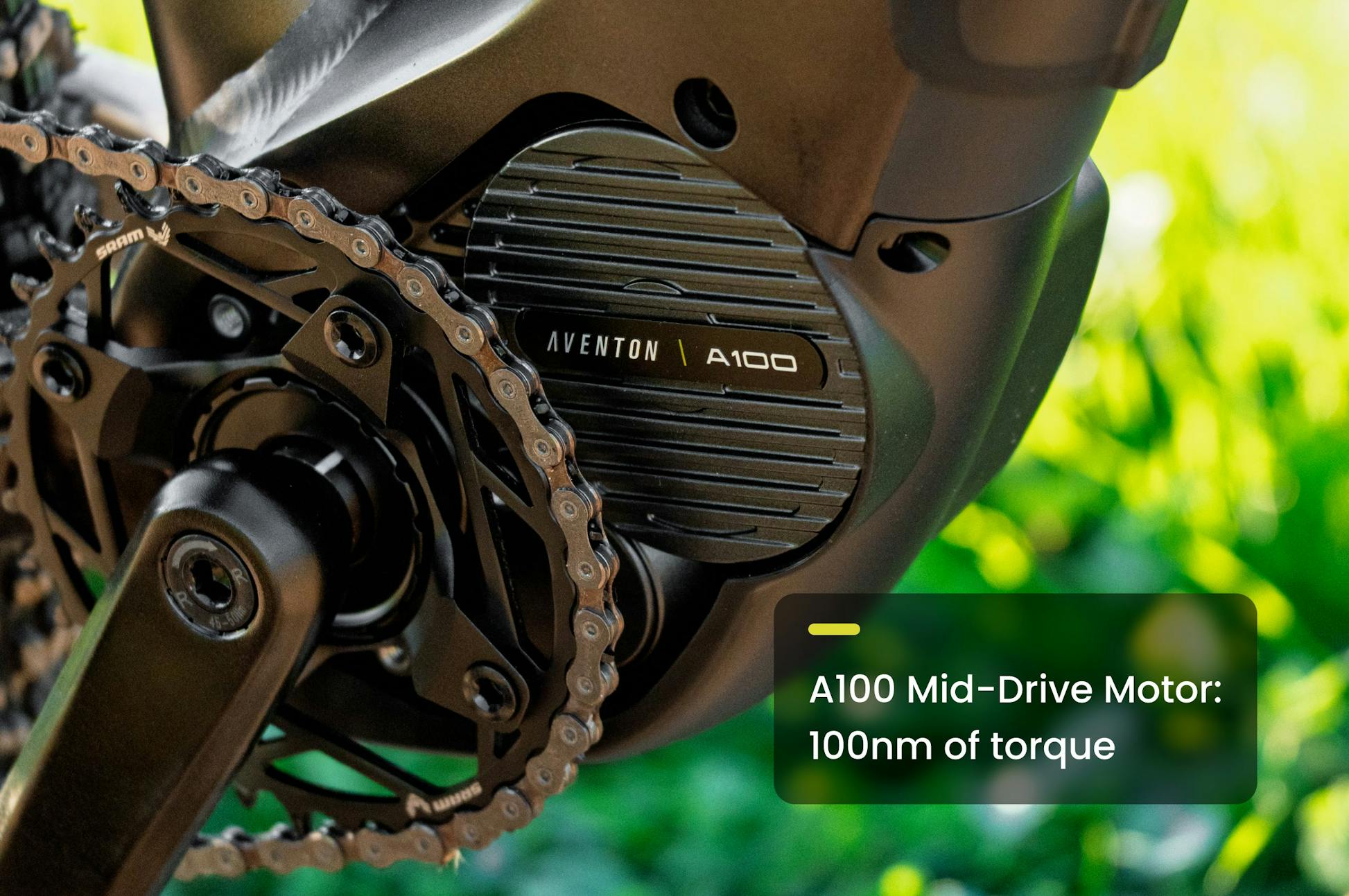

A100 Mid Drive Motor

The A100 mid-drive motor is engineered to enhance your ride with confident and capable motor assistance. With 750W of peak power and a max torque of 100Nm, the A100 is the heart of the Ramblas ADV, enabling you to crush climbs and power through trails with ease.

Hardtail Frame

Ramblas’ hardtail frame is a workhorse for the all-terrain. It's lightweight, durable, and reliable, giving you the confidence you need on mountain trails and rough roads.

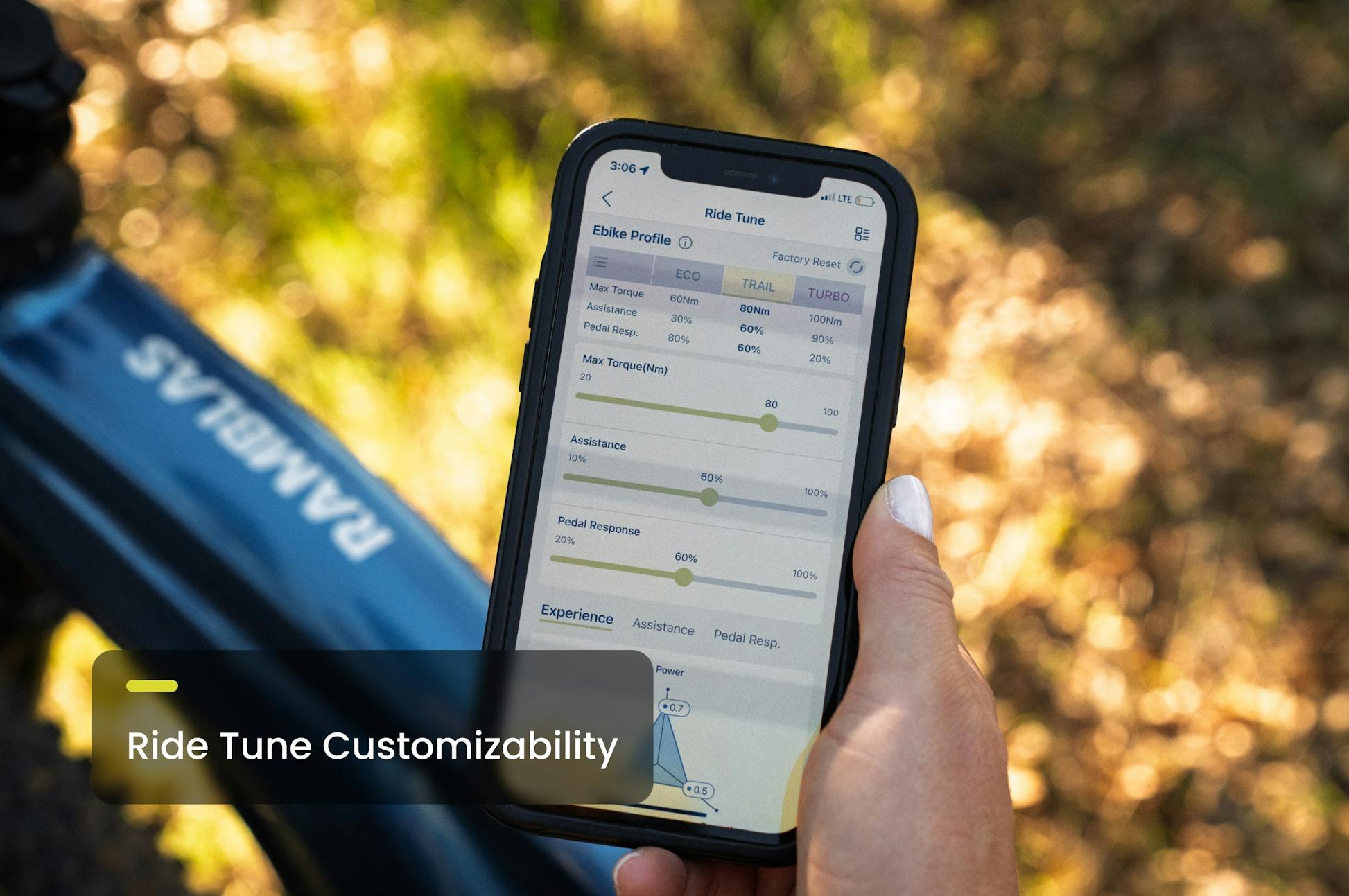

Ride Tune Customization

Ramblas ADV allows you to fine tune each of your pedal assist modes (ECO, TRAIL, TURBO) for a customized ride feel that fits your style and preferences

adventures.

Brakes

Enhance your speed control on steep slopes and loose terrain with Ramblas’ Sram DB6 mineral 4 piston hydraulic disc brakes. With four pistons, Ramblas’ brakes offer superior modulation, meaning more brake fluid is distributed across a larger surface area, allowing you to stop when you need to most.

RockShox Psylo Silver Fork

Ramblas' RockShox Psylo coil fork has 130mm of travel for comfort and capability on all your trail adventures.

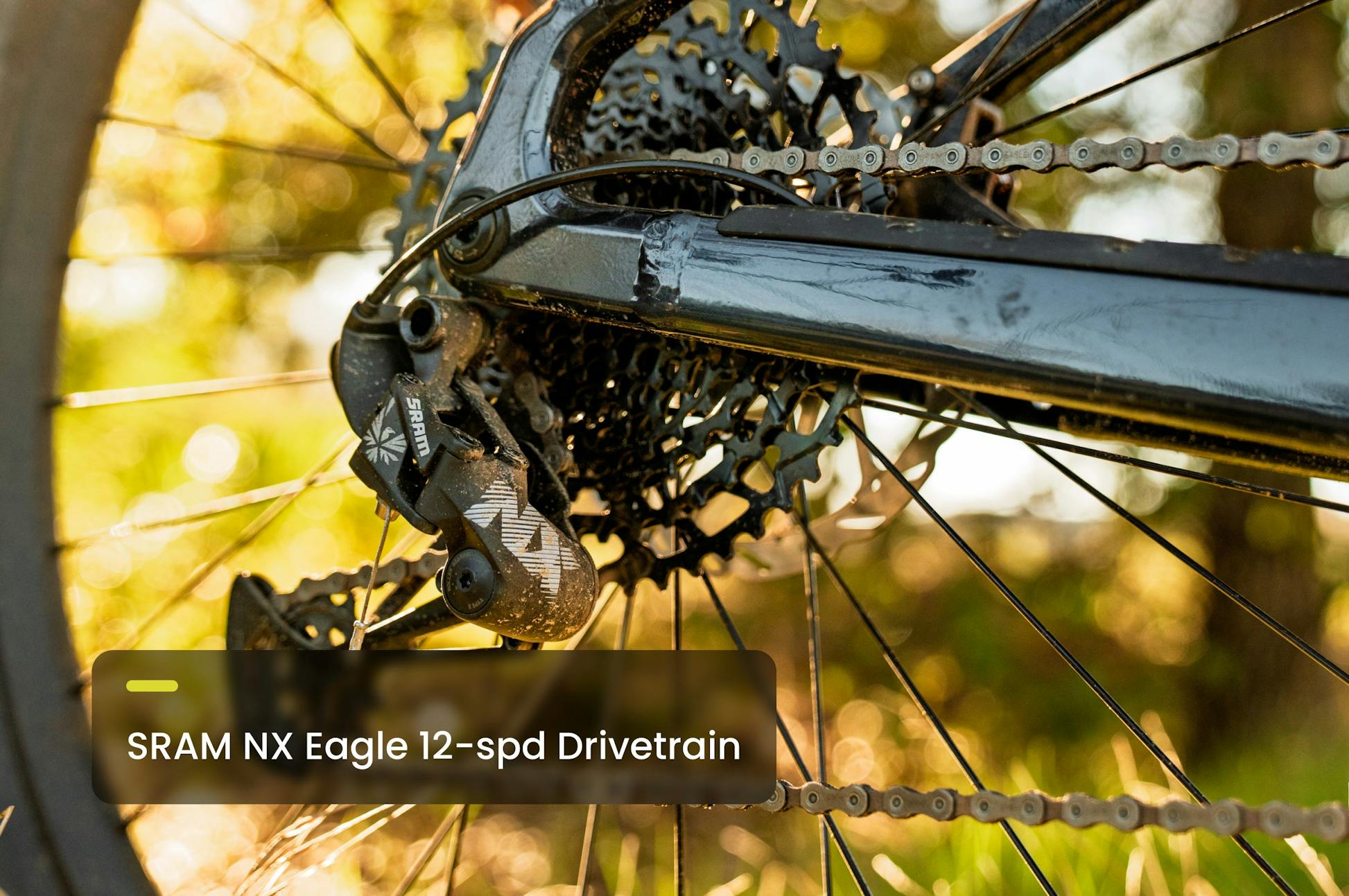

Drivetrain

Ramblas comes equipped with a Sram NX 12-speed drivetrain for more efficiency to climb hills, roll around on trails and ride faster on flat surfaces.

Dropper Seatpost

The updated dropper seatpost offers improved lever actuation and enhances control while navigating steep and technical terrain.

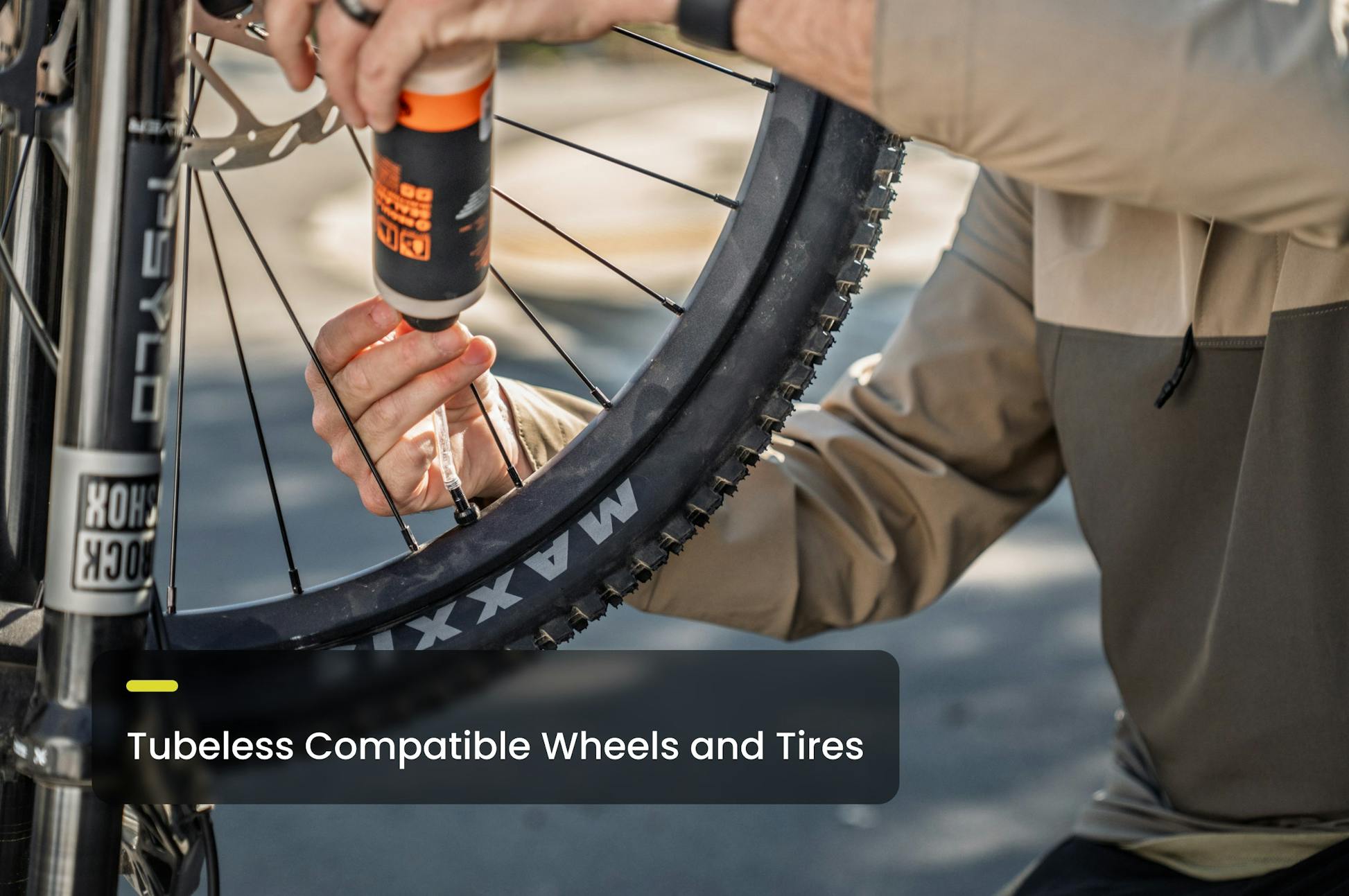

Tubeless Compatible Wheels and Tires

Tubeless wheels and tires provide better flat protection, and allow riders to run lower tire pressures for improved traction and comfort and trails.

TOP SPEED

20 MPH

RANGE

Up To 90 Miles

PHONE APP

iOS, Android

Ramblas ADV comes in 3 sizes to suit most adults:

Geometry

Ramblas ADV Ebike is available in 3 sizes to suit most adults.

Frame Size	Medium	Large	Extra Large
A - Wheel Size	29"	29"	29"
B - Seat Tube Length	410mm	450mm	490mm
C - Top Tube Length Horizontal	616.5mm	642mm	668mm
D - Bottom Bracket Drop	55mm	55mm	55mm
E - Head Tube Length	125mm	135mm	135mm
F - Head Tube Angle	66.5°	66.5°	66.5°
G - Seat Tube Angle	74.5°	74.5°	74.5°
H - Rear Chainstay Length	465mm	465mm	465mm
I - Front Wheel Center	744mm	770.5mm	796mm
J - Wheelbase	1203mm	1230mm	1256mm
K - Reach	432.5mm	455mm	481mm
L - Stack Height	656.5mm	665mm	665mm
M - Fork Length	547mm	547mm	547mm
N - Fork Offset	44mm	44mm	44mm
O - Trail	117mm	117mm	117mm
Standover	702mm	712mm	719.5mm
Rider Height (Range)	165 - 176 cm 5'5" - 5'9"	177 - 188 cm 5'10" - 6'2"	188 - 195 cm 6'2" - 6'5"

COLOR OPTIONS:

Borealis, Cerulean, Tropos

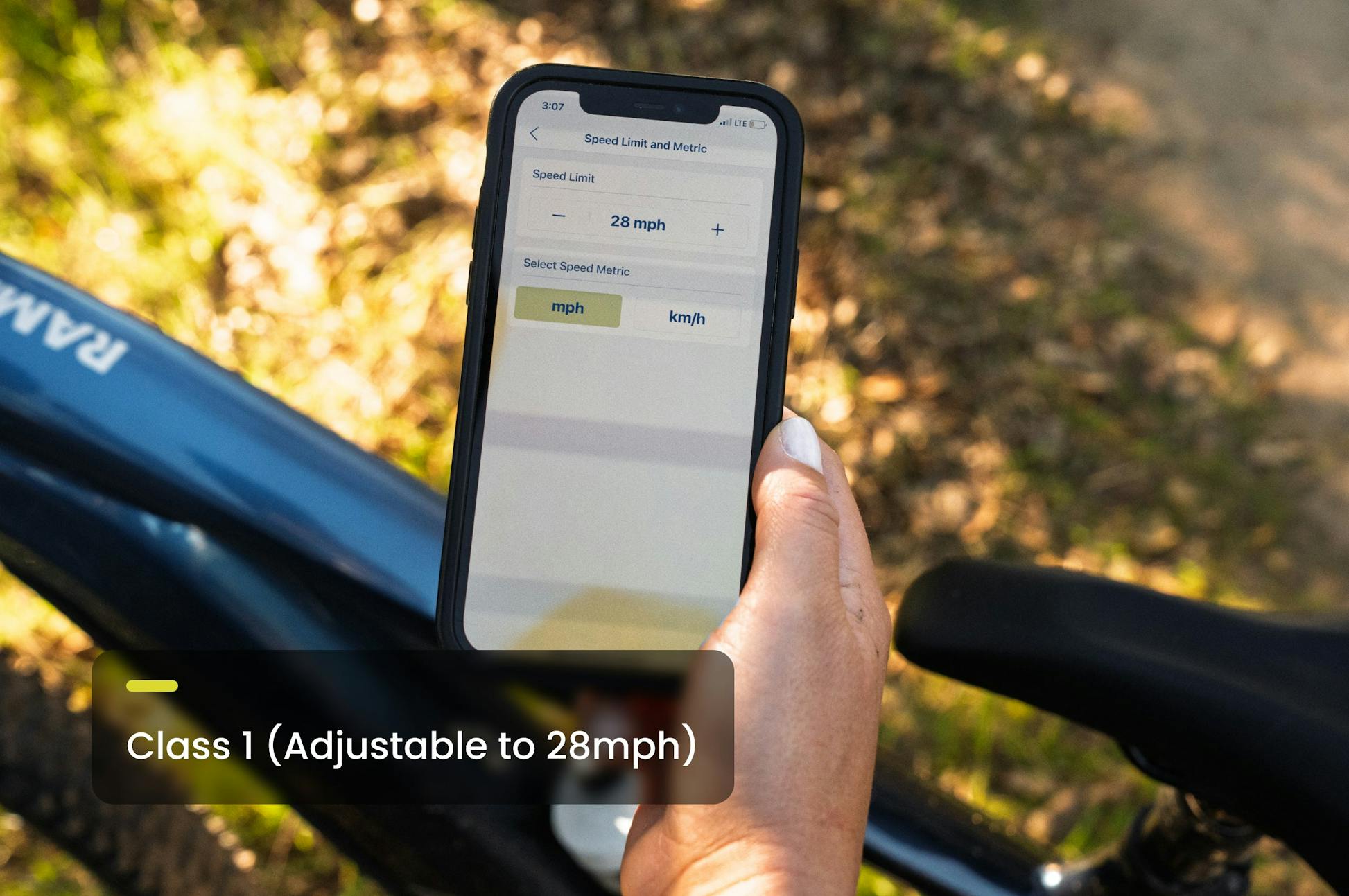

Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.

GENERAL INFO

MODEL

Ramblas eMTB

WEIGHT

54lbs, size large, w/o pedals

FRAMESET

FORK

Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust

FRAME

Single-Butted Aluminum Alloy

WHEELSET

HUBS

15x110 32H Front, 12x148 32H Rear

RIM

Double Wall Aluminum 32h Front & Rear

SPOKES

Black Stainless 13 Gauge

TIRES

S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4" TR

TUBES

Butyl Rubber, Presta Valve

EBIKE SYSTEM

BATTERY

Aventon 708 WH. 36V LG 21700 cells.

CHARGER

42V 4A charger

DISPLAY

LCD Smart "Easy Read"

MOTOR

Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

BRAKES

REAR BRAKE ROTOR

Sram 200mm 6 bolt

FRONT BRAKE ROTOR

Sram 200mm 6 bolt

BRAKES

Sram DB6 mineral 4 piston hydraulic disc brakes

DRIVETRAIN

REAR DERAILLEUR

Sram NX Eagle 1x12

PEDALS

9/16" Alloy Platform

CHAINRING

Sram Nx 34t

CASSETTE

Sram SX Eagle 1x12 11-50t

SHIFT LEVER

Sram NX Eagle 1x12 single click

COCKPIT

SEATPOST

Manic LC 150mm travel for size M-XL. 31.6mm ø. 395mm length

HANDLEBARS

35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL

GRIPS

Lock on

STEM

35mm Ø, 40mm length

SEAT CLAMP

Aventon 34.9mm

INCLUDED ACCESSORIES

KICKSTAND

Included in accessory box
