Aventon Pace 500.3 Step-Through

Regular price: $1,599.00
Sale price: $1,599.00
Regular price
Unit price: per

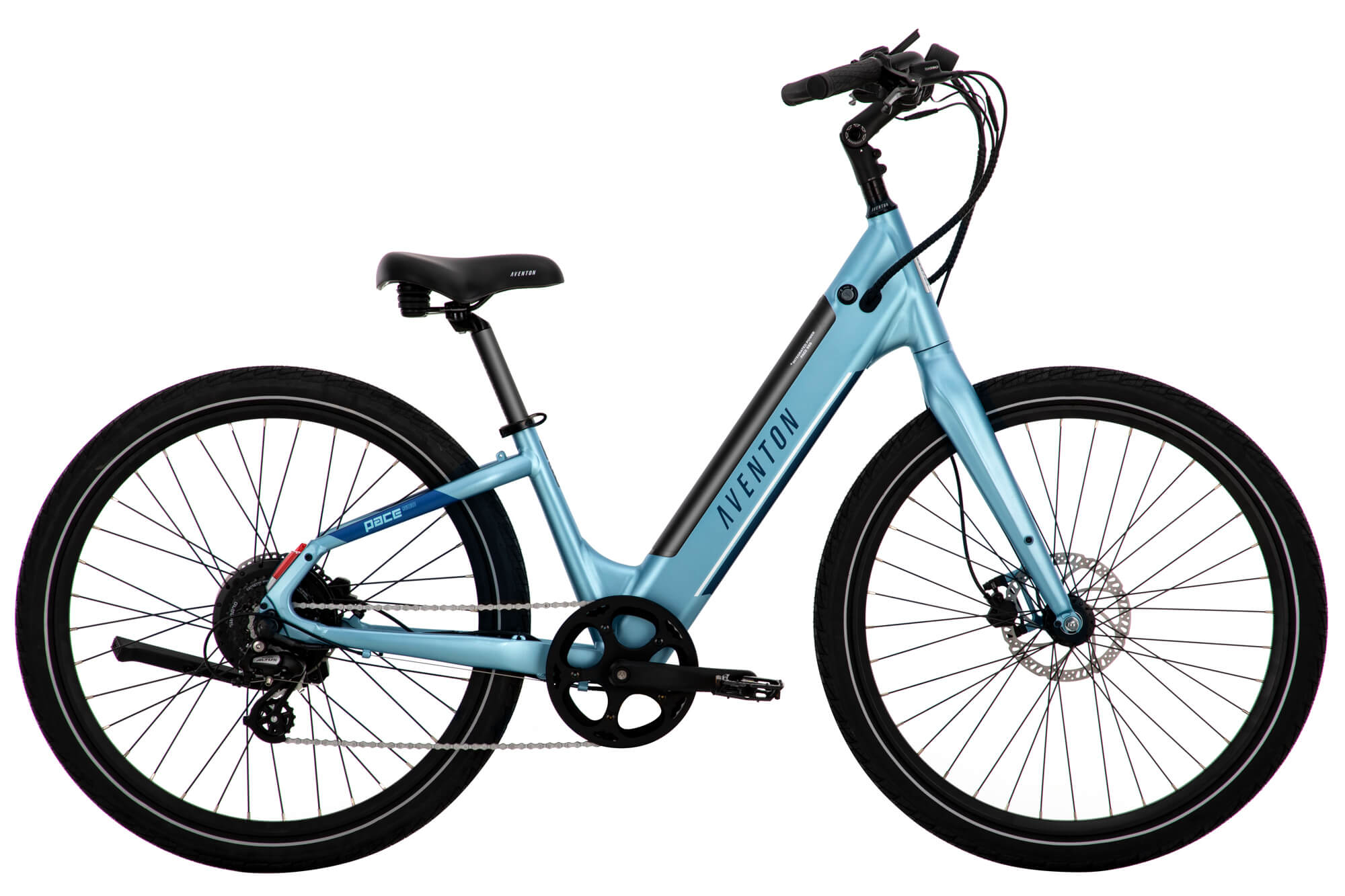

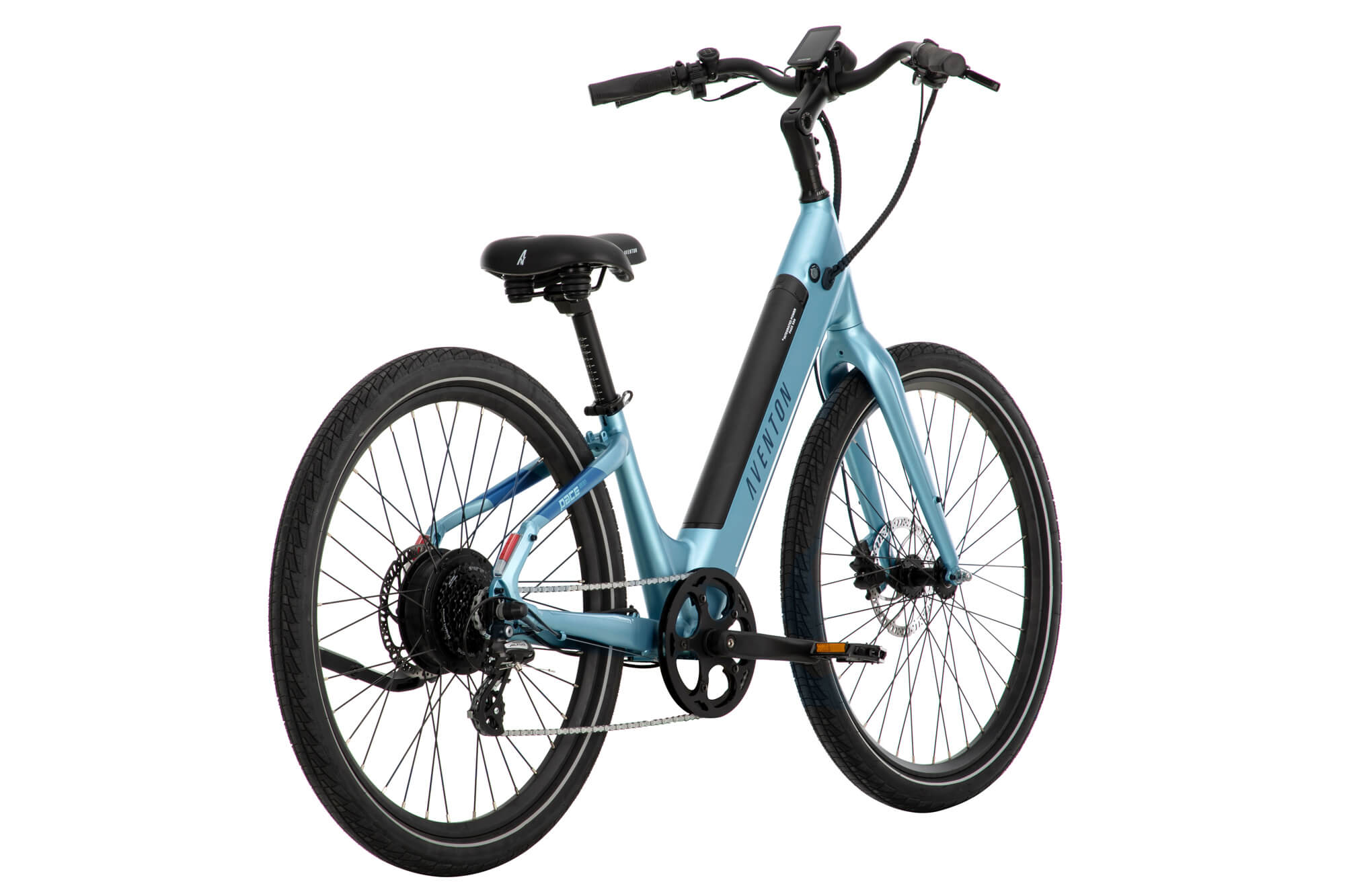

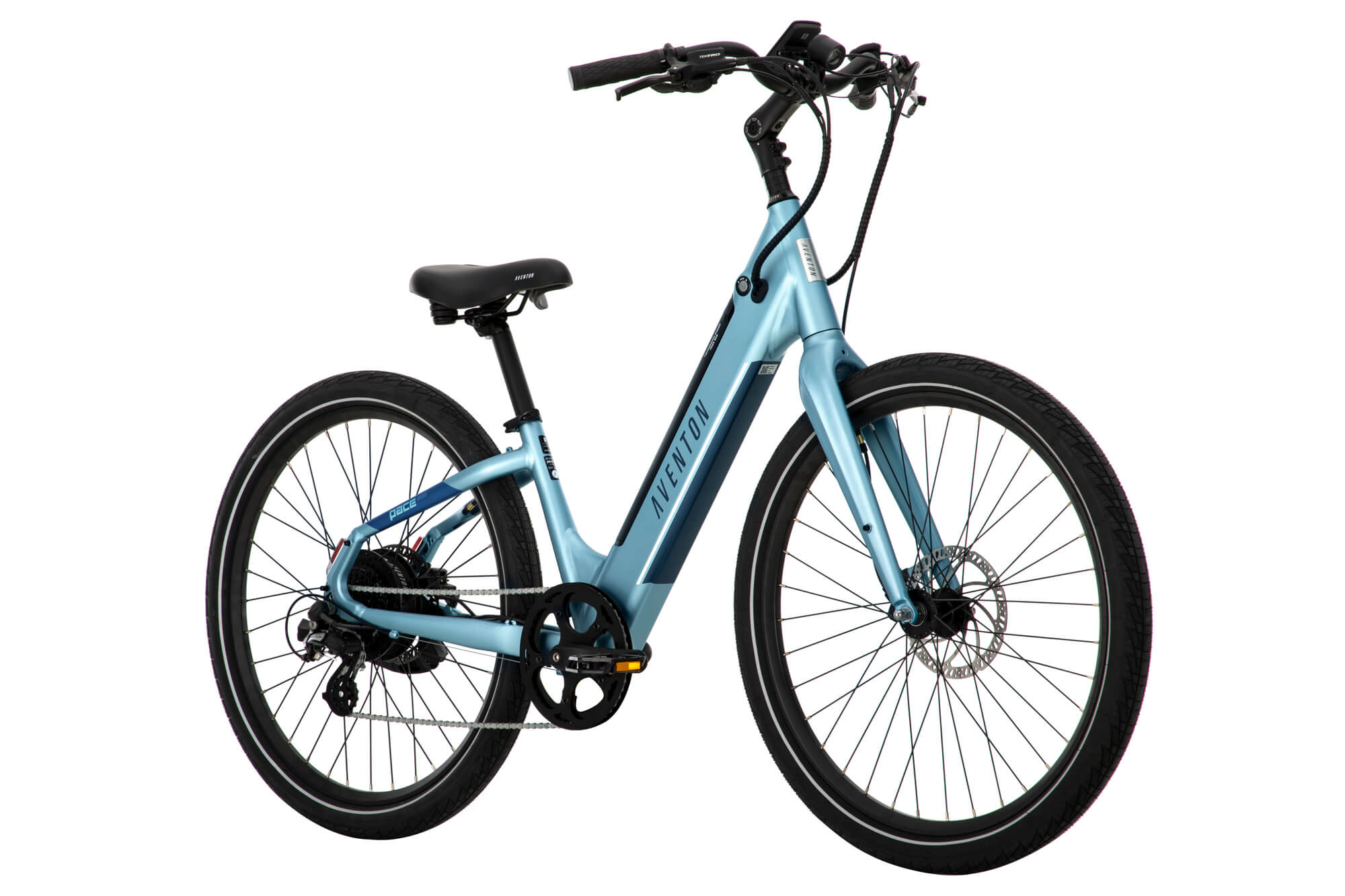

Pace 500.3 Step-Through E-Bike

Pace 500.3 Step-Through is easy access to fun! Its intuitive torque sensor amplifies your efforts and puts you in control of the way you cruise. Find renewed energy then set the pace at your leisure by switching between the 4 new pedal assist levels: eco, tour, sport and turbo. Take the longer route with its powerful 500W motor’s top speed of 28 mph and up to 60 miles in range. The all-new turn signal functionality will keep you protected on the road by signaling to those behind you when you’re switching lanes and making moves. Ride comfortably with its cushioned saddle, swept-back handlebars and an upright riding position. Pace 500.3 Step-Through reinvigorates the way you get around. It’ll feel like riding a bicycle for the first time, every time.

Pace 500.3 comes in 2 sizes to suit most adults.
Typical Rider Height Range by Frame Size
Regular: 4'11" - 5'7"
Large: 5'7" - 6'1"

On STEP-THROUGH models, the frame is physically larger in several dimensions on the LARGE frame size, including the step through height, reach and saddle height range. Riders should choose the frame size with the range of adjustability on the saddle height to suit their leg length as well as the comfortable step through height range. Riders anywhere close to the recommended height range within a few inches can feasibly choose either frame size with no problem. Riders significantly shorter than the height range break and/or with shorter leg length, will want to choose the REGULAR frame size in order to have a low enough range for the saddle height.

Frame Size	REGULAR	LARGE
Top Tube Length	617 mm	639 mm
Reach	348 mm	363 mm
Head Tube Length	195 mm	215 mm
Standover Height	415 mm	445 mm
Wheelbase	1086 mm	1108 mm
Minimum Saddle Height	765 mm	805 mm
Maximum Saddle Height	965 mm	995 mm

COLOR OPTIONS:

Ghost White
Blue Steel

The Pace 500.3 Step-Through comes out of the box as a Class II ebike, with pedal assist and throttle going up to 20 MPH. It can be unlocked to a Class III ebike and can go up to 28 MPH on pedal assist. The Pace 500.3 Step-Through will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS Eco throughout flat terrain with a rider weight of 160 lb.

MOTOR

500W 48V Brushless Hub Motor

THROTTLE

Throttle on demand - Throttle from a complete stop

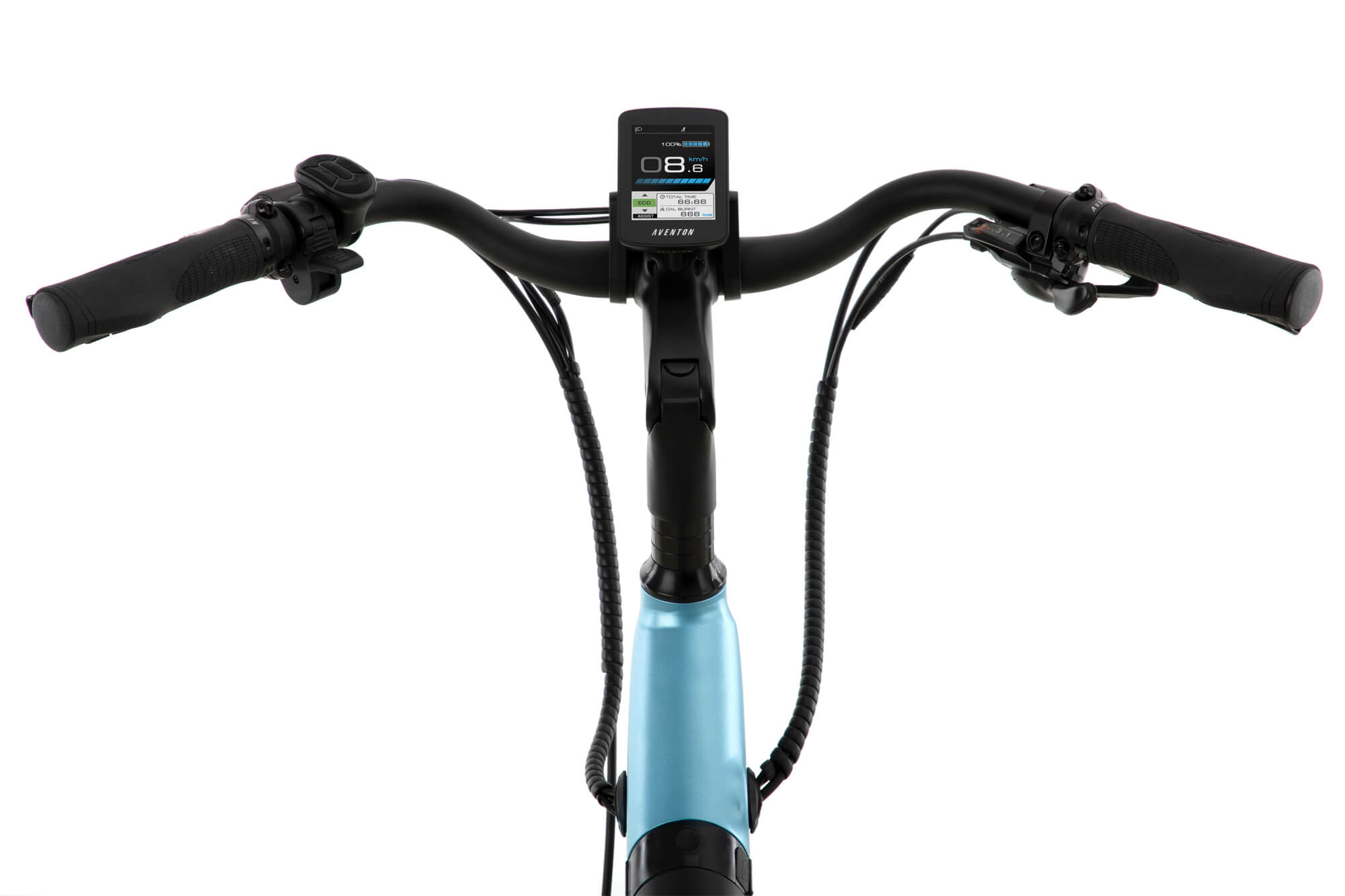

DISPLAY

LCD Smart Easy Read Display with Backlight, Colorful screen with app

SPEED

Up to 28 MPH on Pedal Assist

BATTERY

Removable Internal Lithium-ion 48V 12.8Ah (614Wh) with LG cells

SENSORS

Torque Sensor

PEDAL ASSIST

4 Levels

CHARGER

48V 3 Amp Fast Charger, 4-5 Hour Charging

RANGE

Up to 60 Miles* on PAS 30 Miles on Throttle

FRAME

6061 Single-Butted Aluminum Alloy with Internal Battery

WEIGHT

52 lbs

PEDALS

9/16' Alloy Platform

AE-E08-V2 AL Fork

WEIGHT LIMIT

300 lbs

KICKSTAND

Included, Rear Mount

BOTTOM BRACKET

Square Taper, Sealed, Torque Sensor

CRANKSET

170mm w/ 48 T

REAR DERAILLEUR

8 Speed

CASSETTE

12-32T, 8 Speed

SHIFT LEVER

8 Speed Trigger

BRAKES

Hydraulic Disc Brakes

CHAIN

122 Link, 8 Speed

Double Wall Aluminum 36h Front & Rear

TUBES

Butyl Rubber, Schrader Valve

36H Disc Nutted Front, Nutted Rear

TIRES

27.5" x 2.1" Puncture Resistant, Reflective Sidewalls

SADDLE

Aventon Saddle

SEATPOST

Forged Alloy, 30.9mm 2-Bolt Clamp

Threadless, 31.8mm, 90mm

SEAT CLAMP

34.9 mm Quick Release

HANDLEBARS

Aluminum 31.8mm, Sweptback

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort

DIMENSIONS

Bike Box: 150 cm x 27 cm x 86 cm
